LOCATION
Kuzmin, Serbia
PROJECT AREA
18786,74 m
PROJECT HISTORY
04.09.2021
About the Project
SERBIA - INFRASTRUCTURE
Name of the Work: Detailed Regulation Plan, Design and implementation of bridge over Sremska Racha Kuzmin highway and Sava river
KUZMIN-SREMSKA RAÇA ROAD Km: 0 + 000,00 / Km: 18 + 786,74
Location: The Belgrade-Zagreb motorway is separated from the Kuzmin region; It is between the Sava river crossing on the Serbia-Bosnia border and Bosnia.
- Length of the road: 18786,74 meters
- Road Width: 27.00 meters
- Road Type: 2x2
- Serbia Section Height: 17190,36 meters

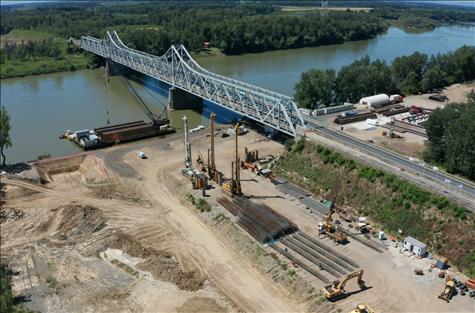

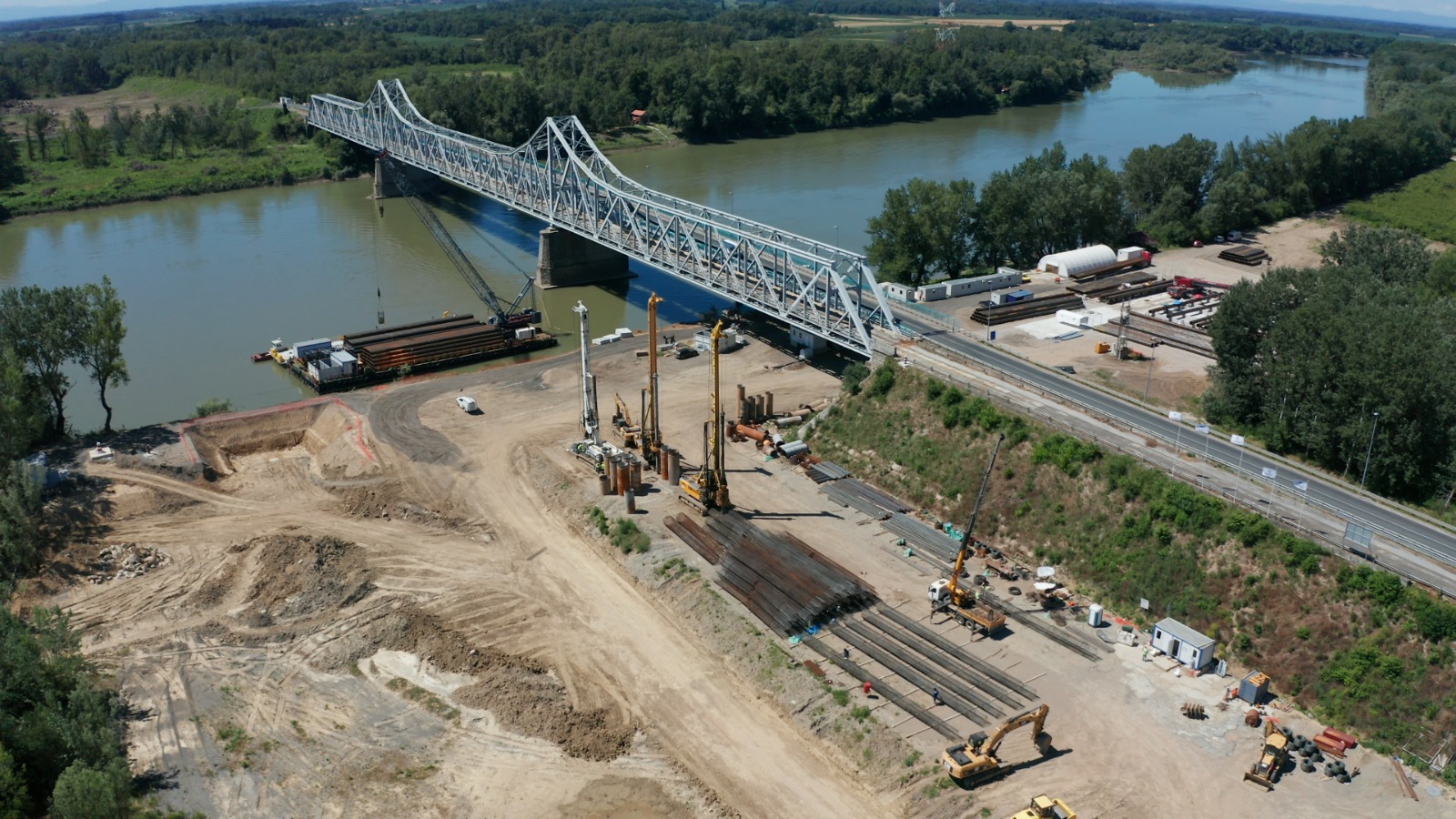

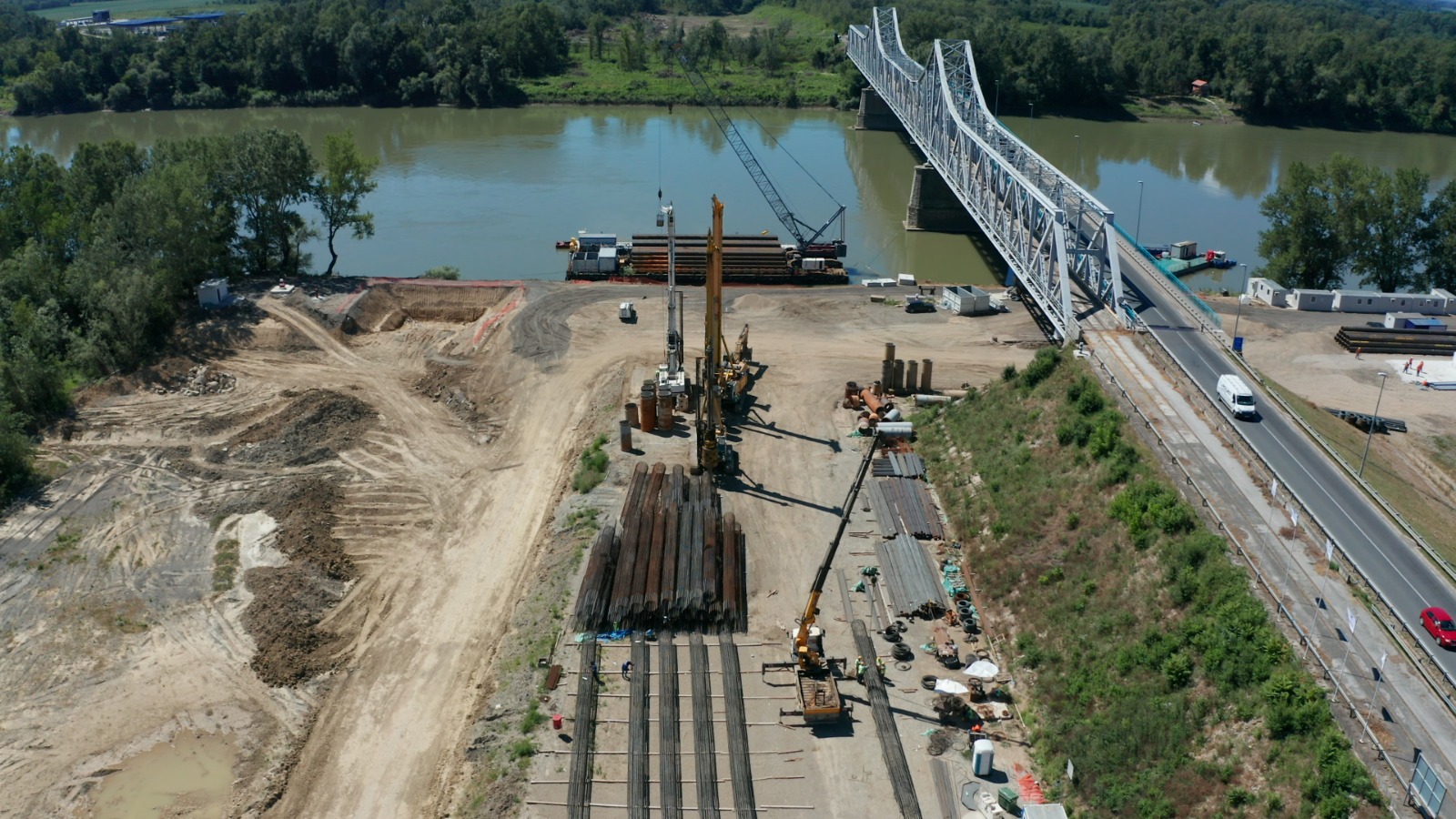

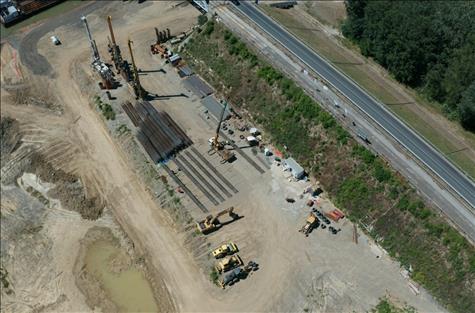

- Sava river crossing length: 330 meters
- Bosnian Division Height: 1326,37 meters

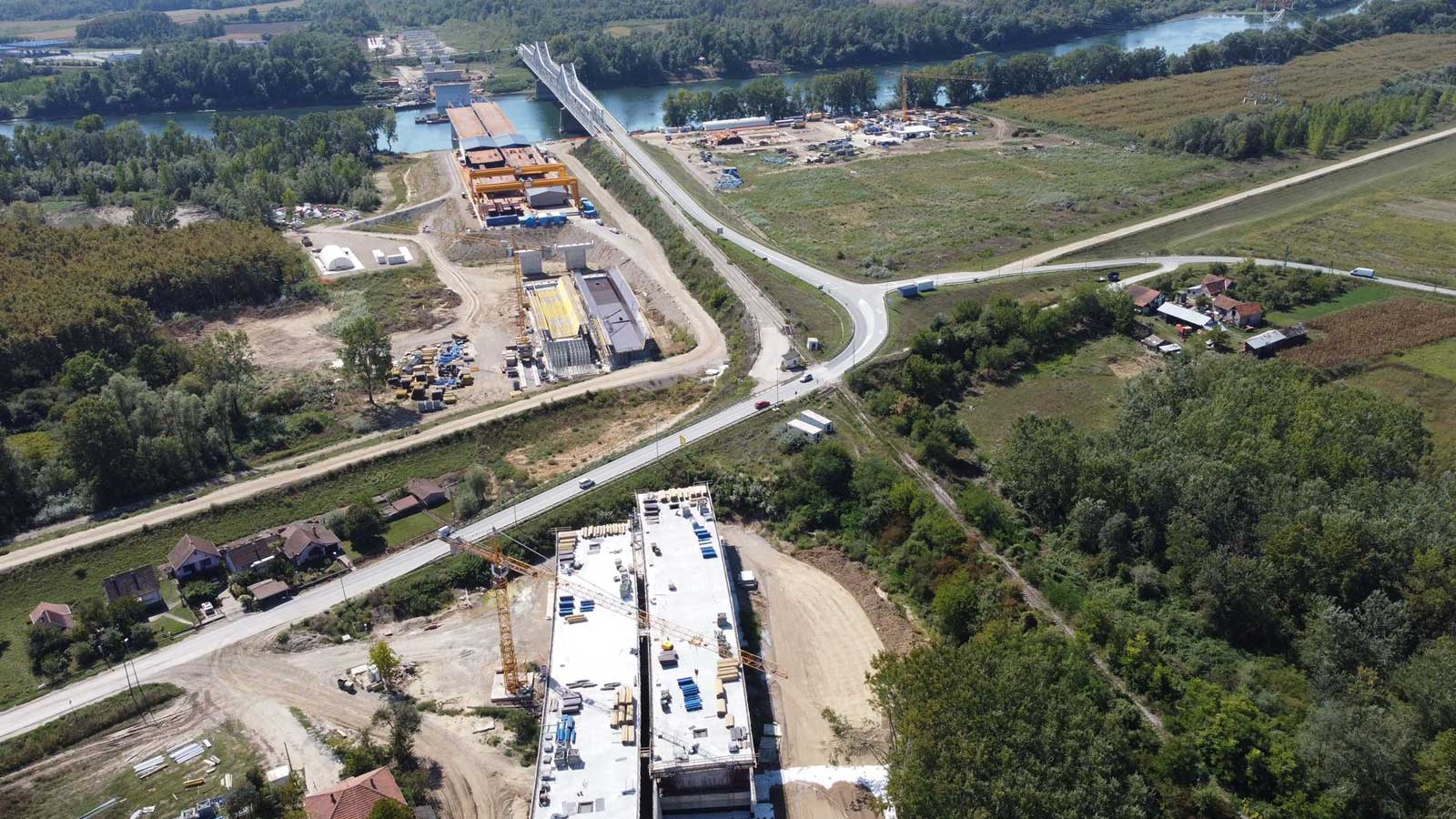

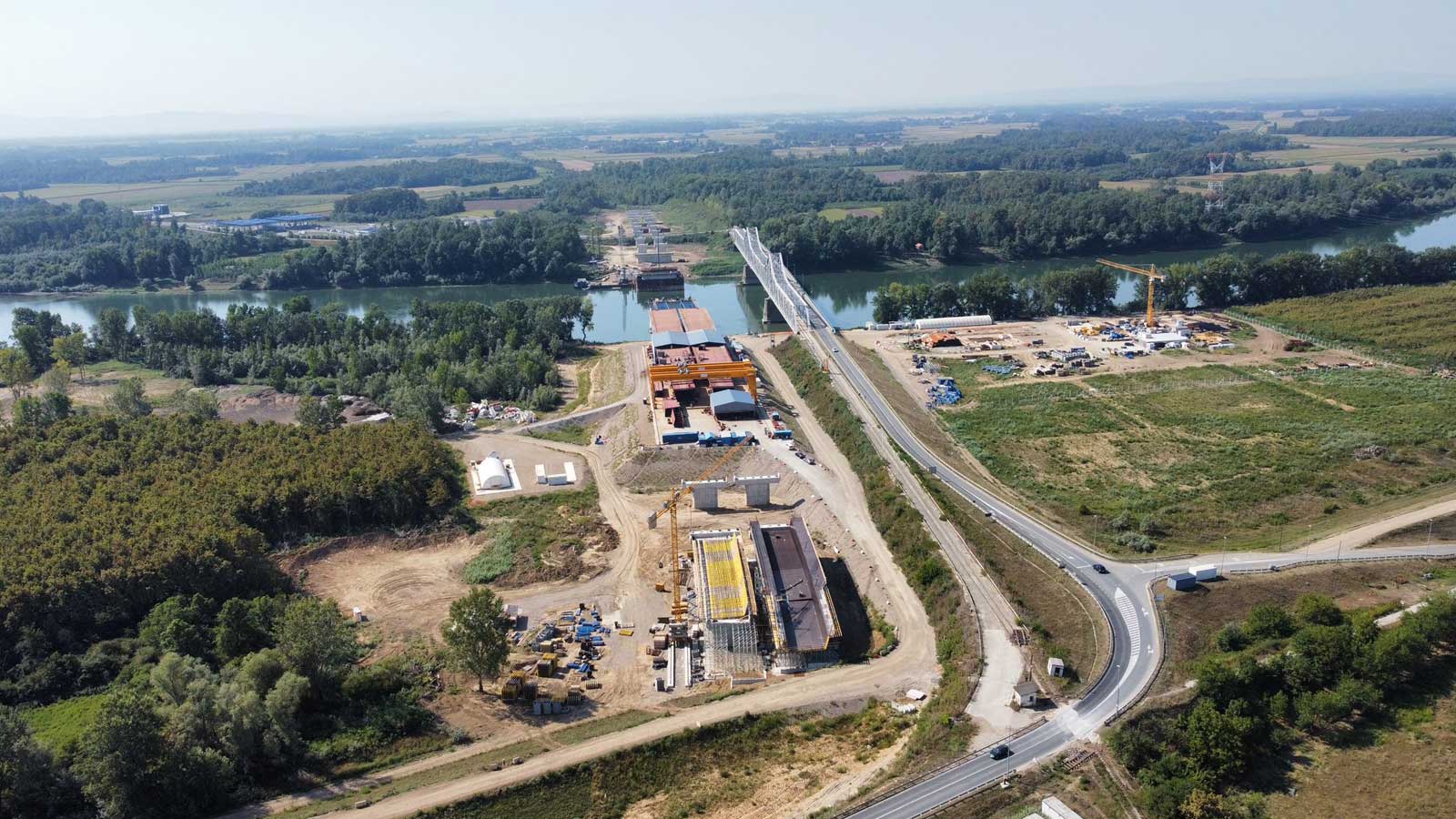

- Sava river crossing Serbia side approach bridge length: 536.06 meters

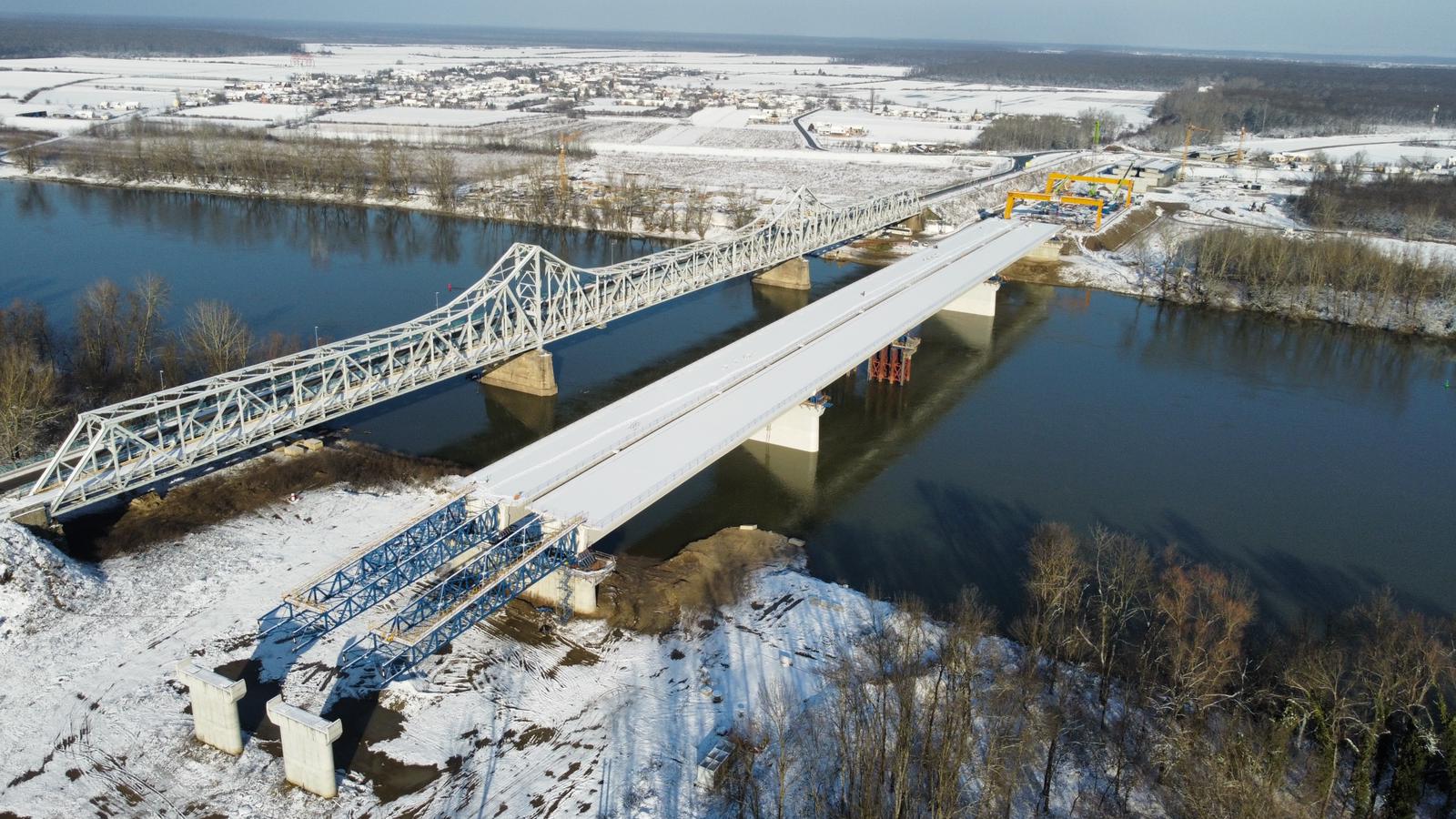

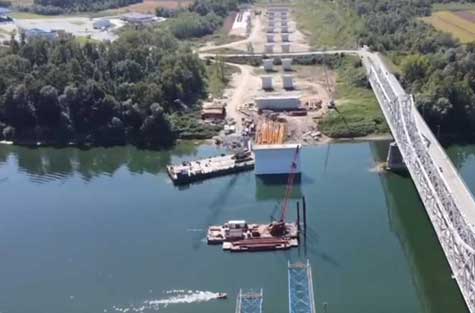

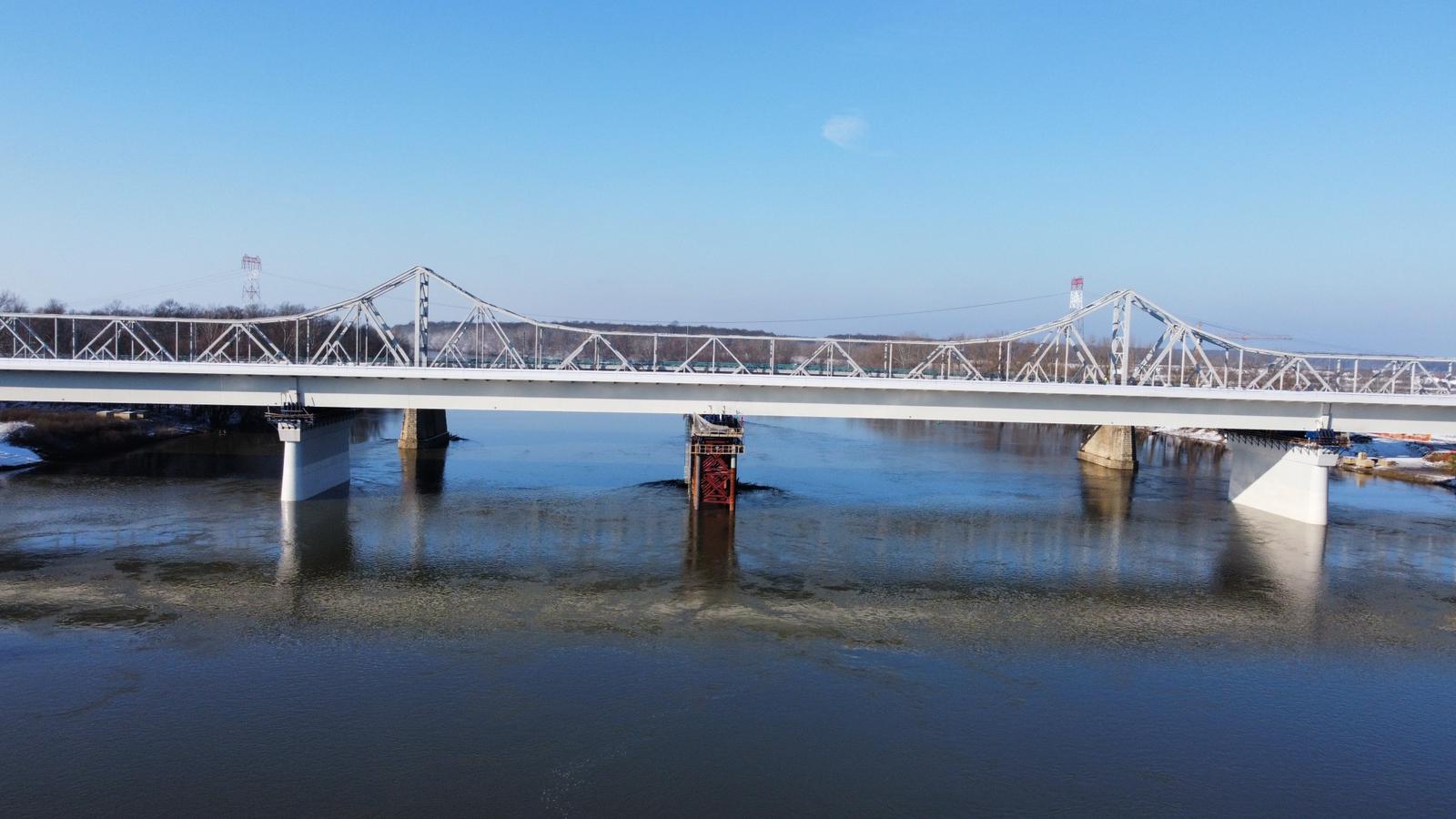

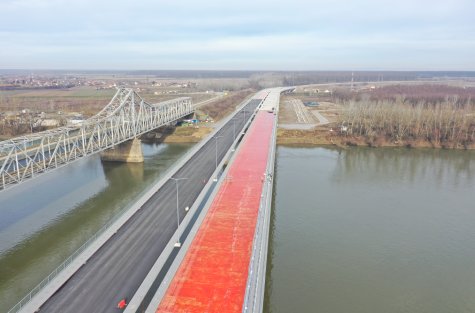

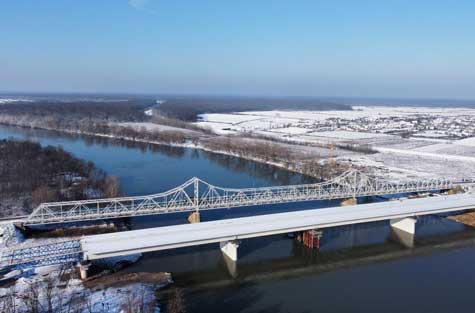

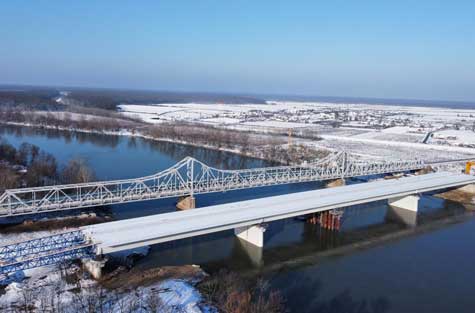

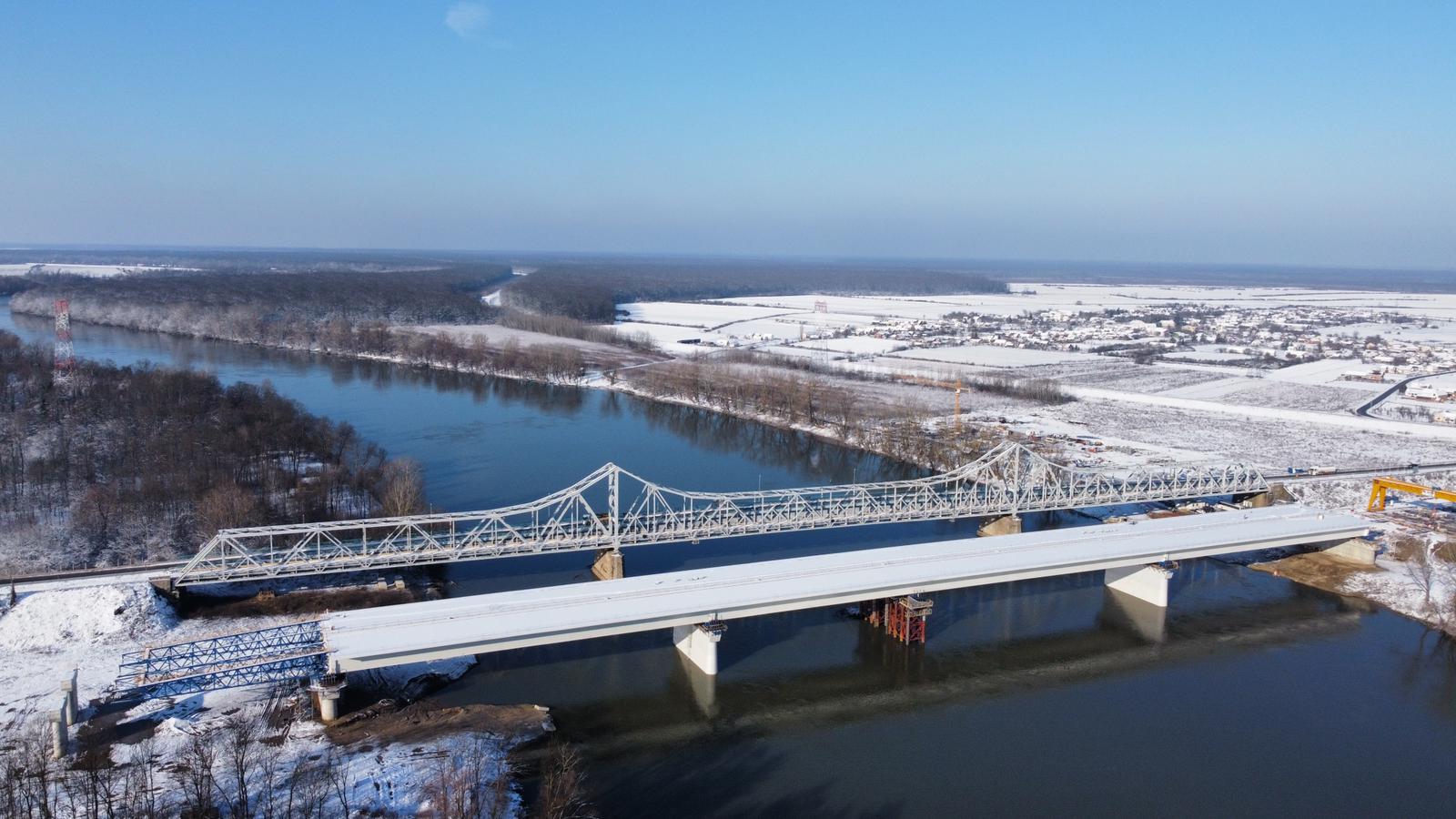

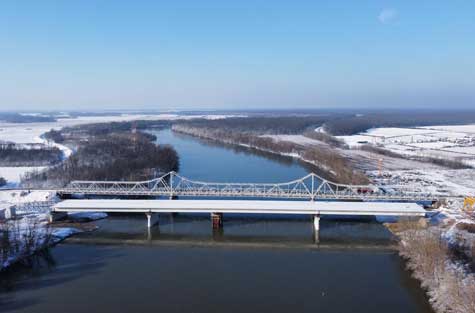

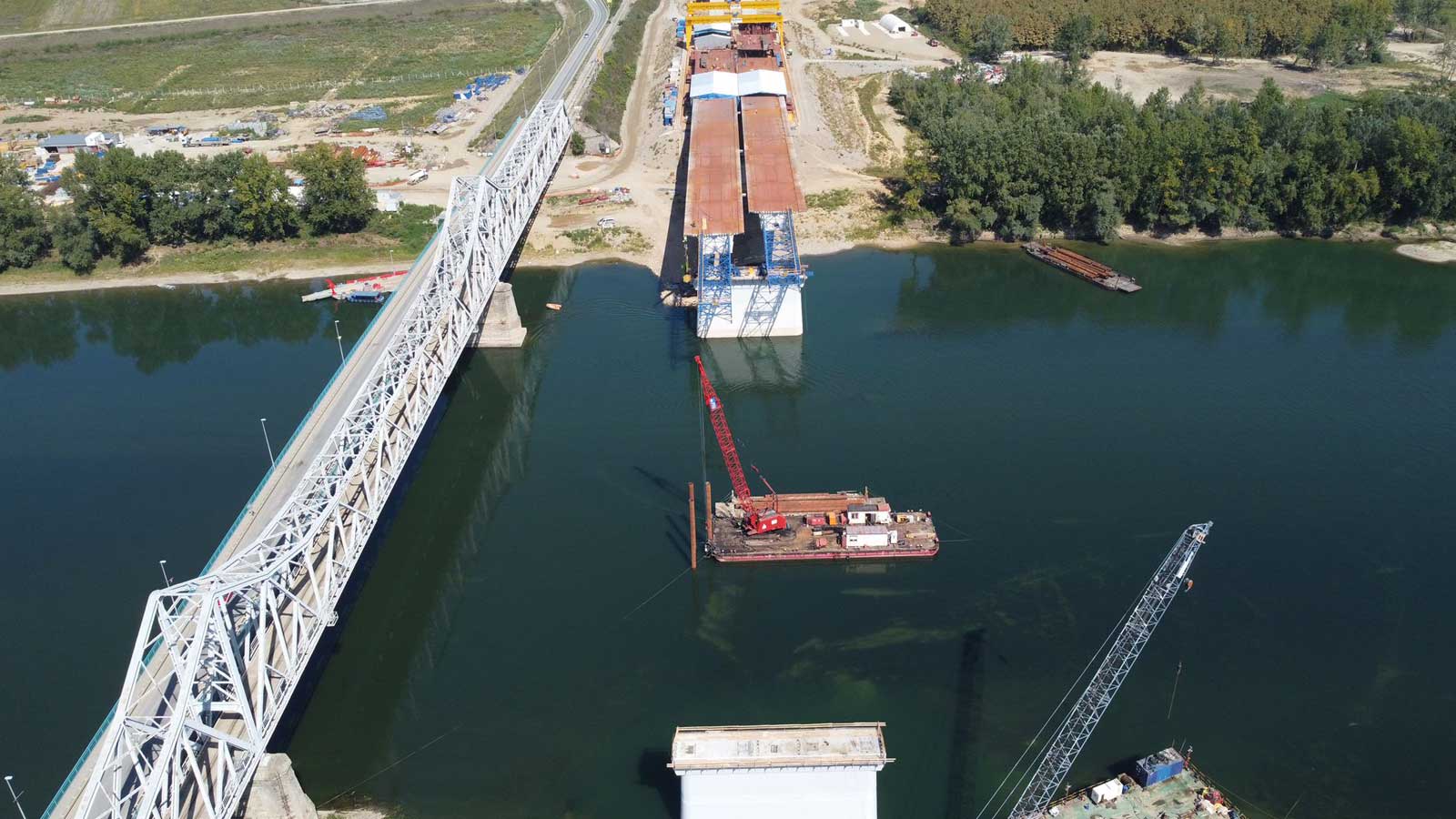

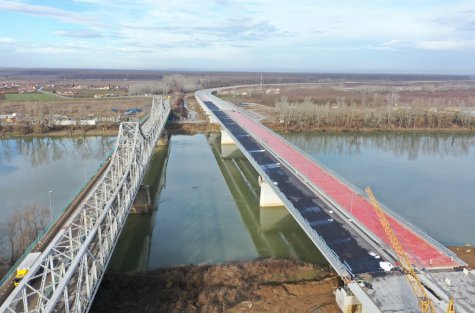

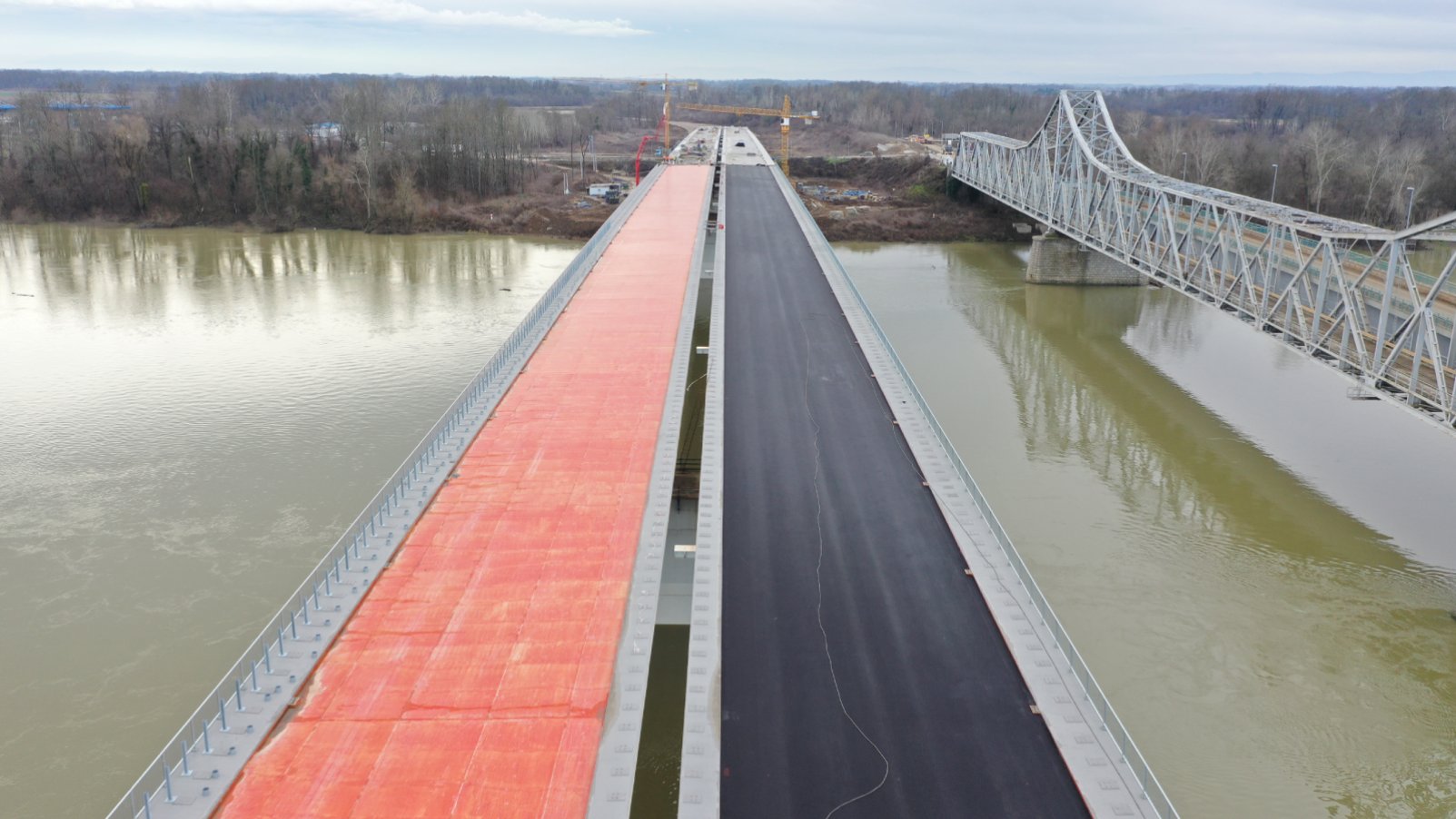

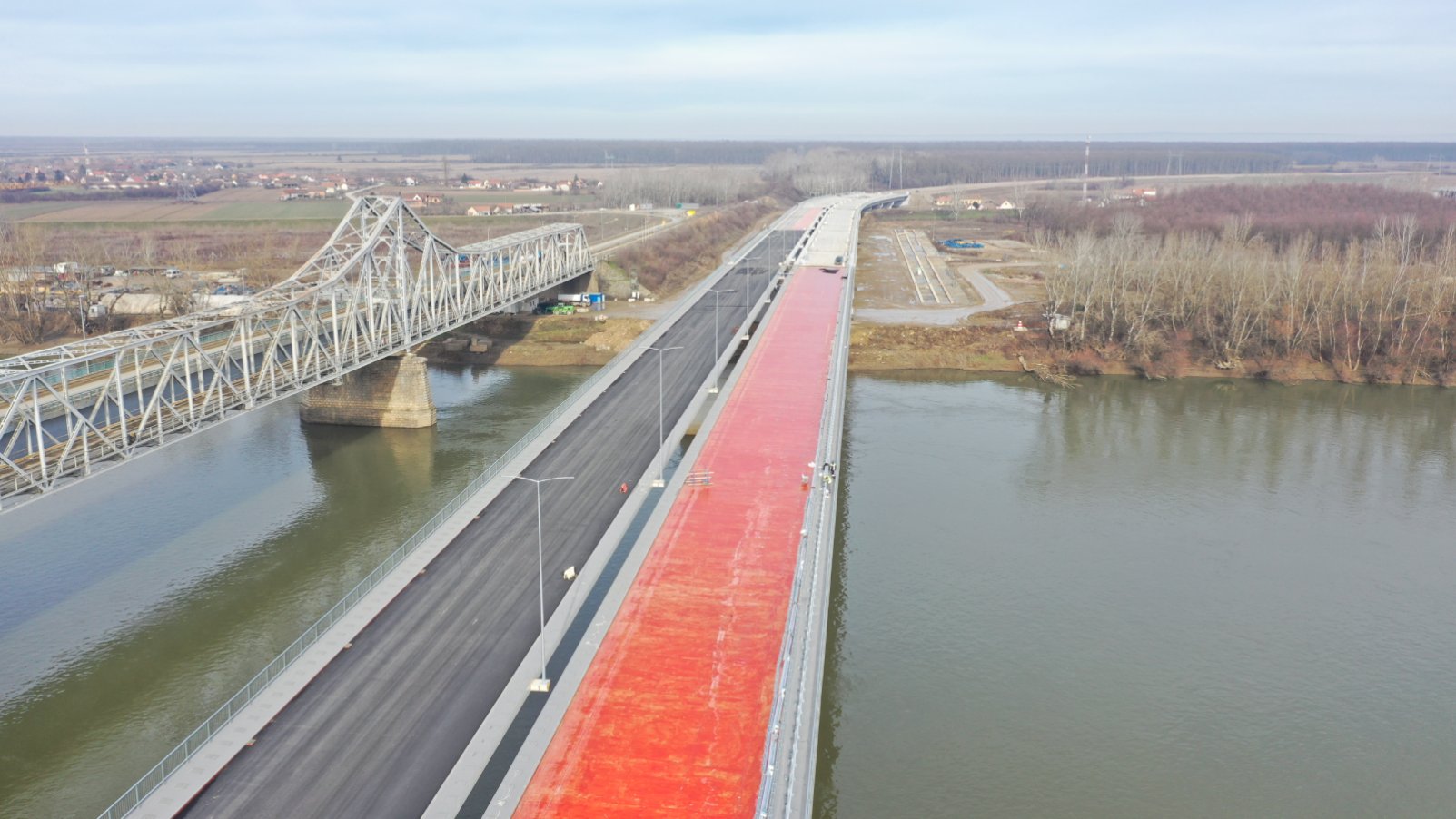

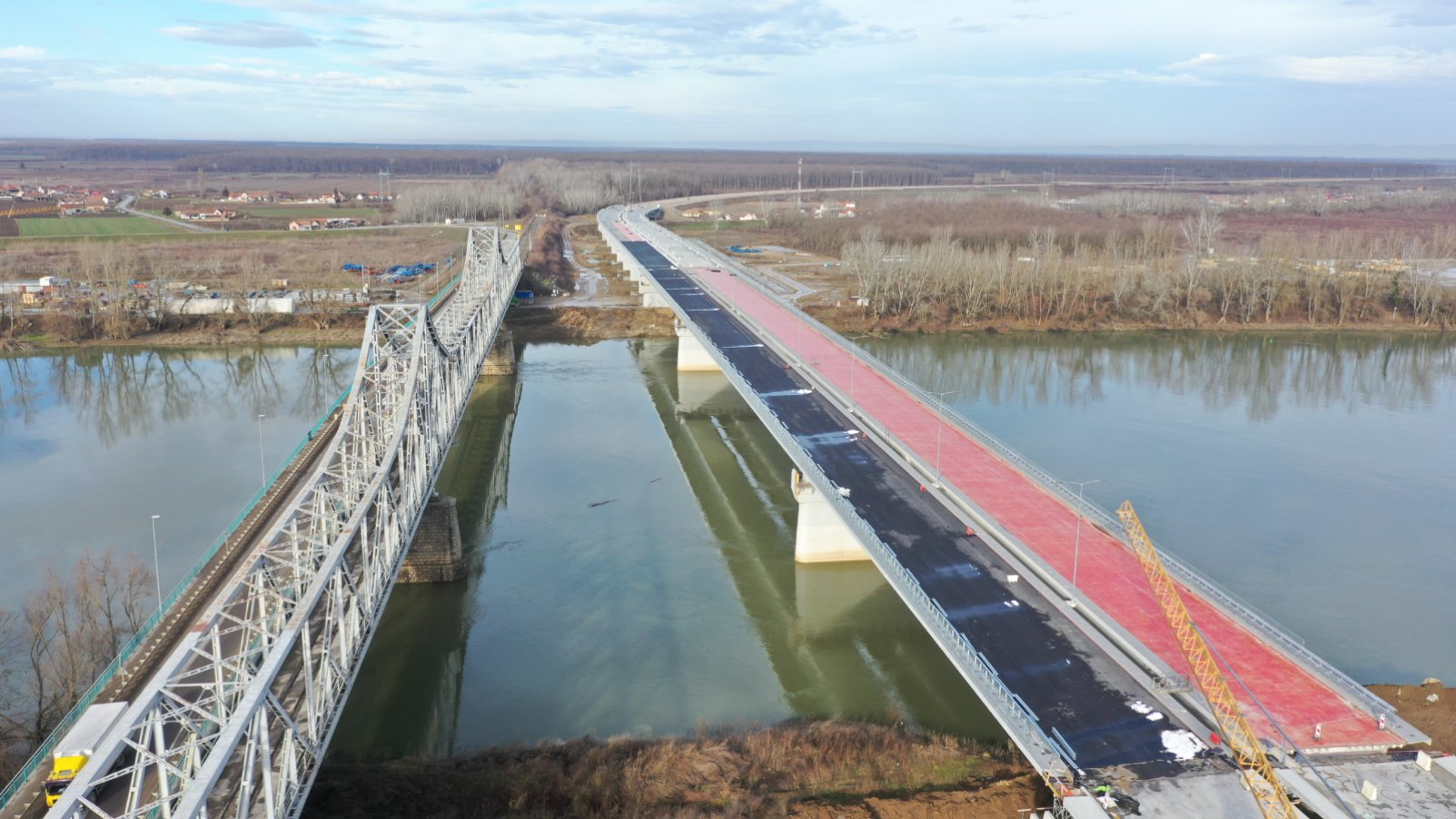

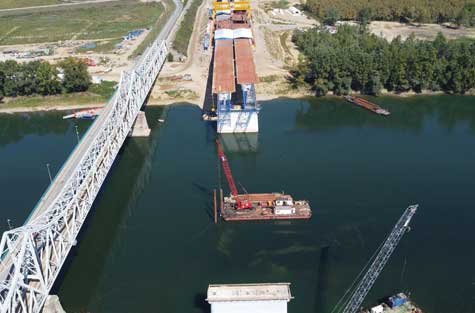

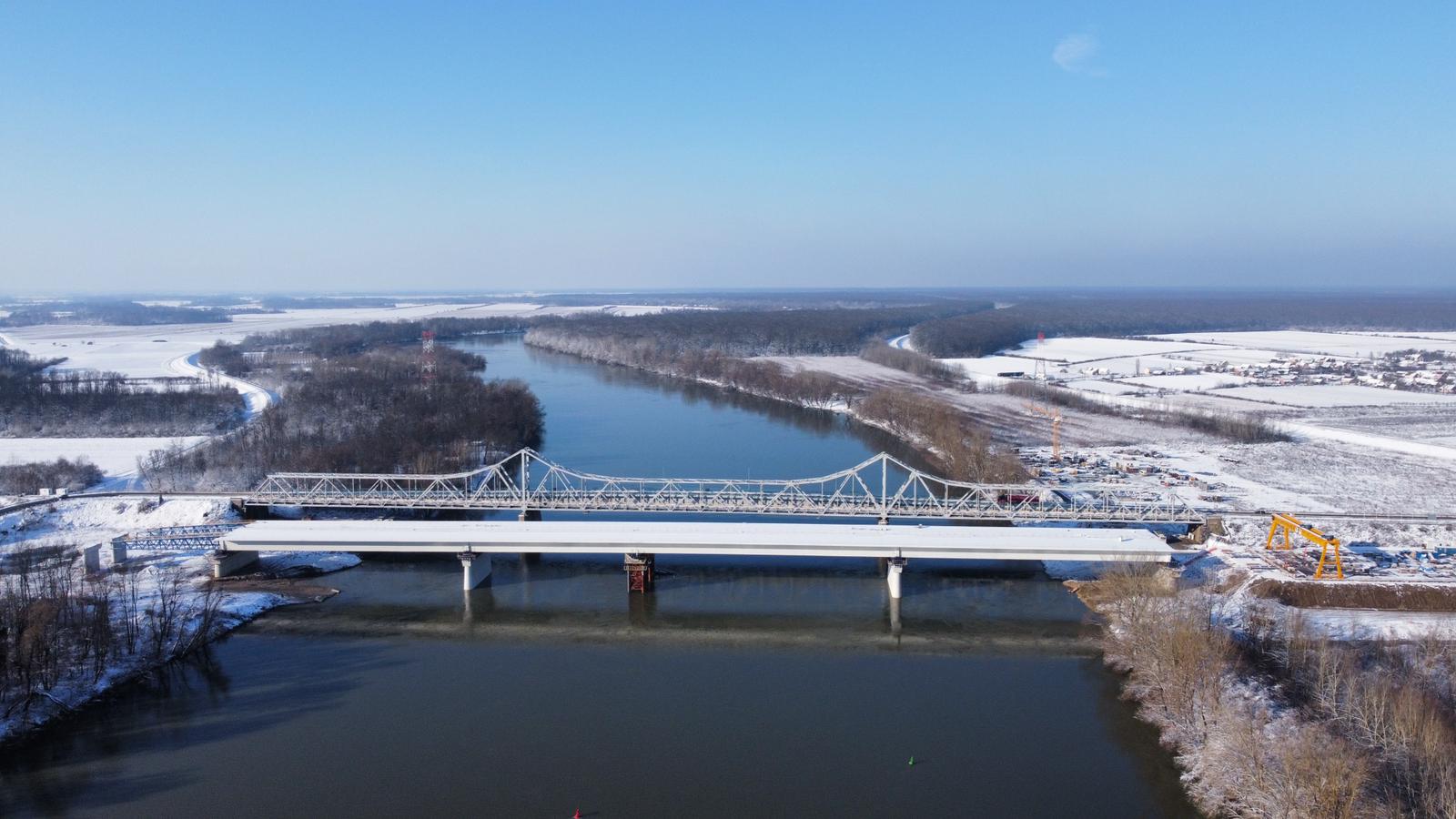

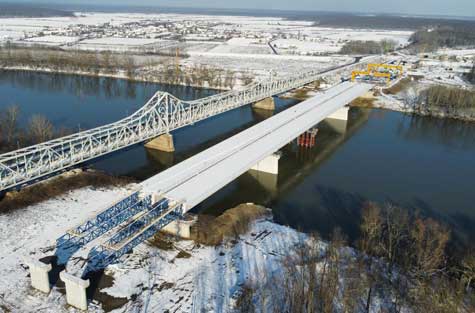

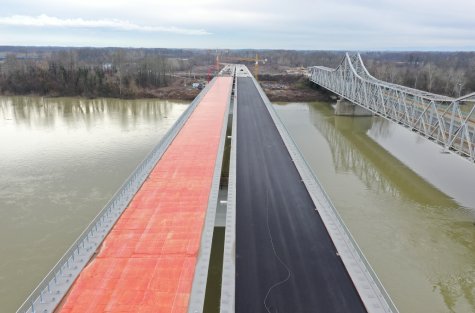

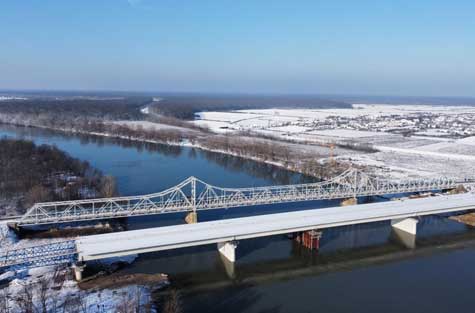

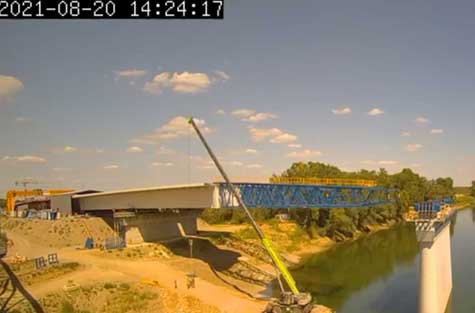

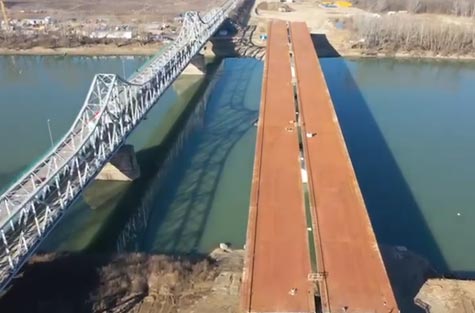

- Sava river bridge length: 330 meters
- Sava river crossing Bosnia side approach bridge length: 450 meters

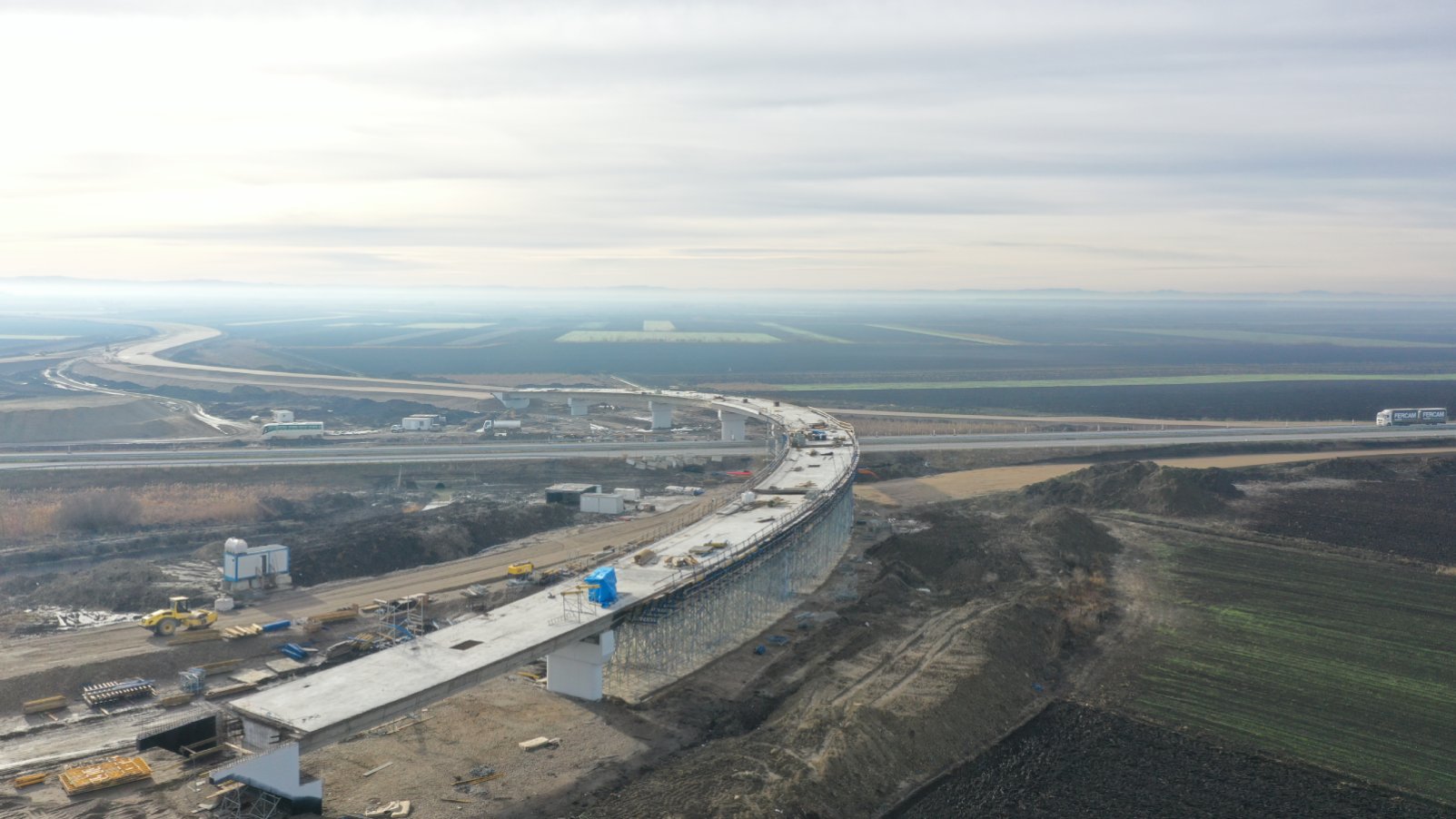

Bridges:

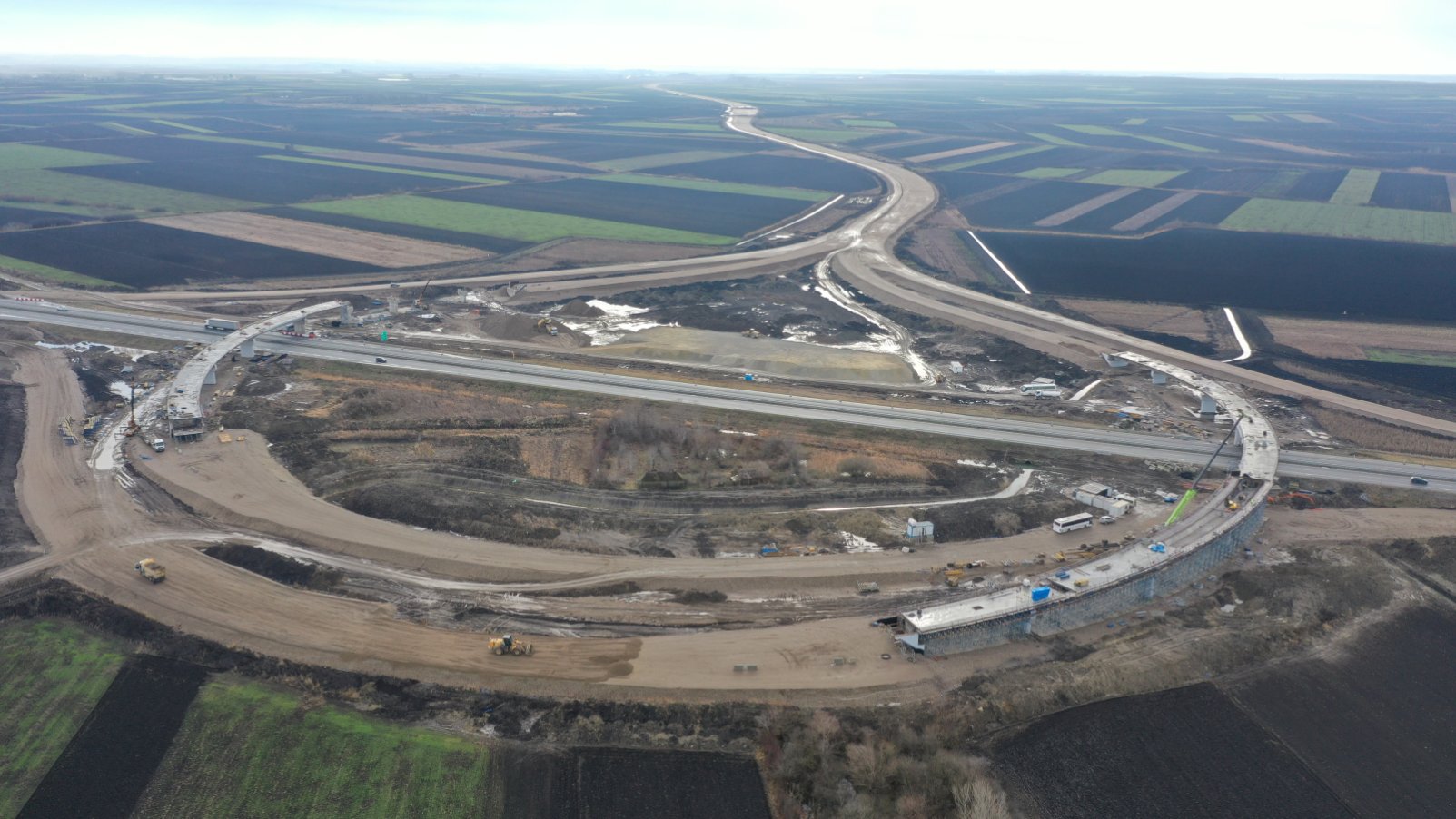

- Kuzmin highway crossroad no.3 road bridge 263.00 meters
- Kuzmin highway crossroad no.4 road bridge 301.40 meters
- Borsut crossroad bridge: 250.40 meters
- Sremska Racha Railway bridge 20.00 meters

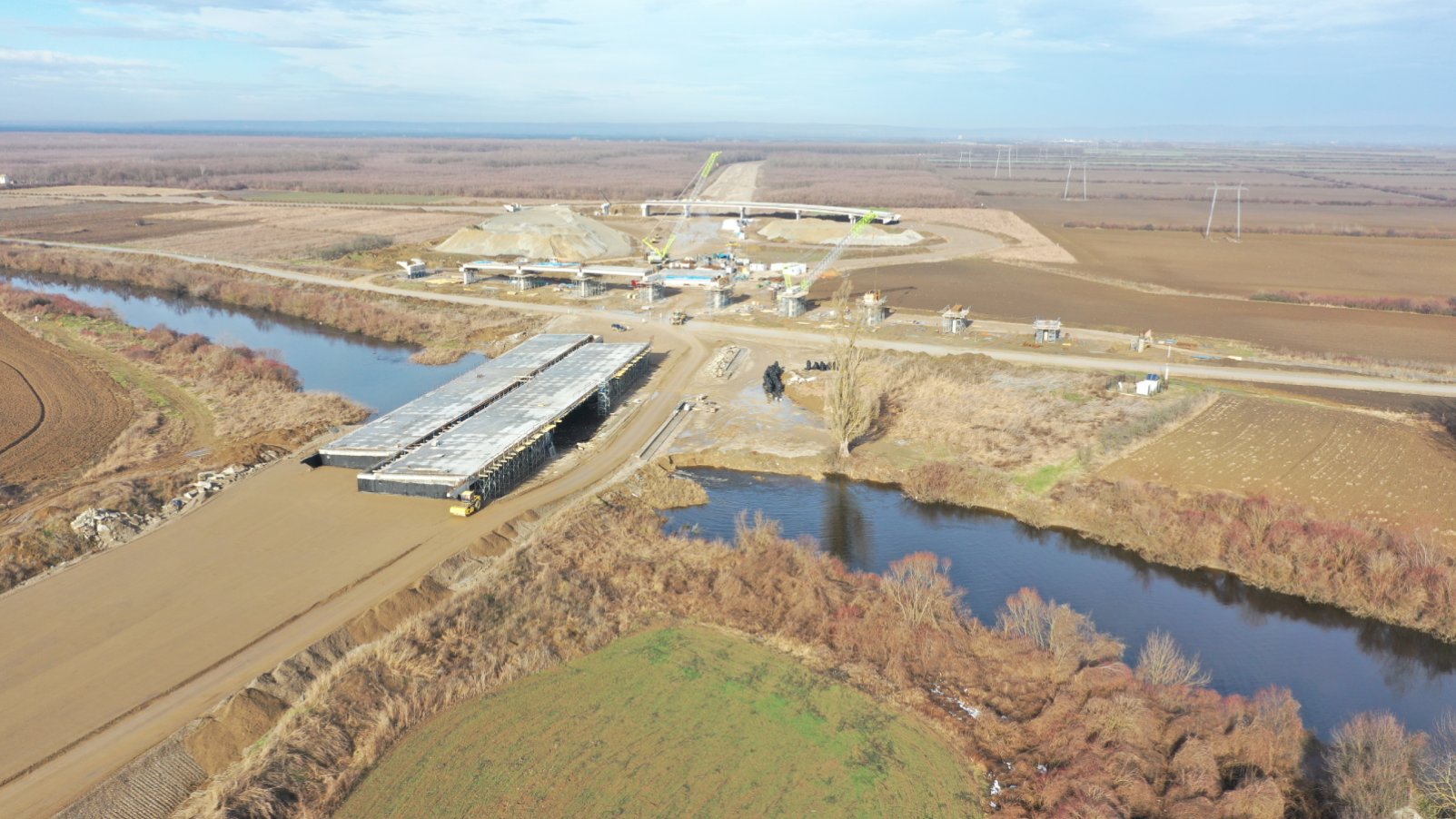

- Bosut river bridge 123,00 meters
- Canal and road crossing bridge 44.00 meters

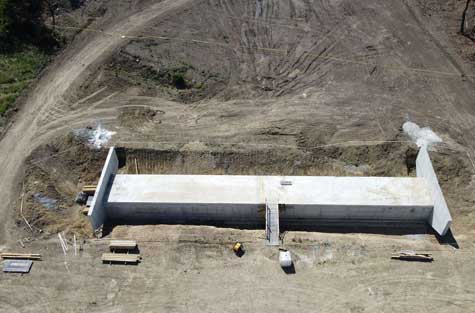

- Twenty-two irrigation canals and field road crossing bridges

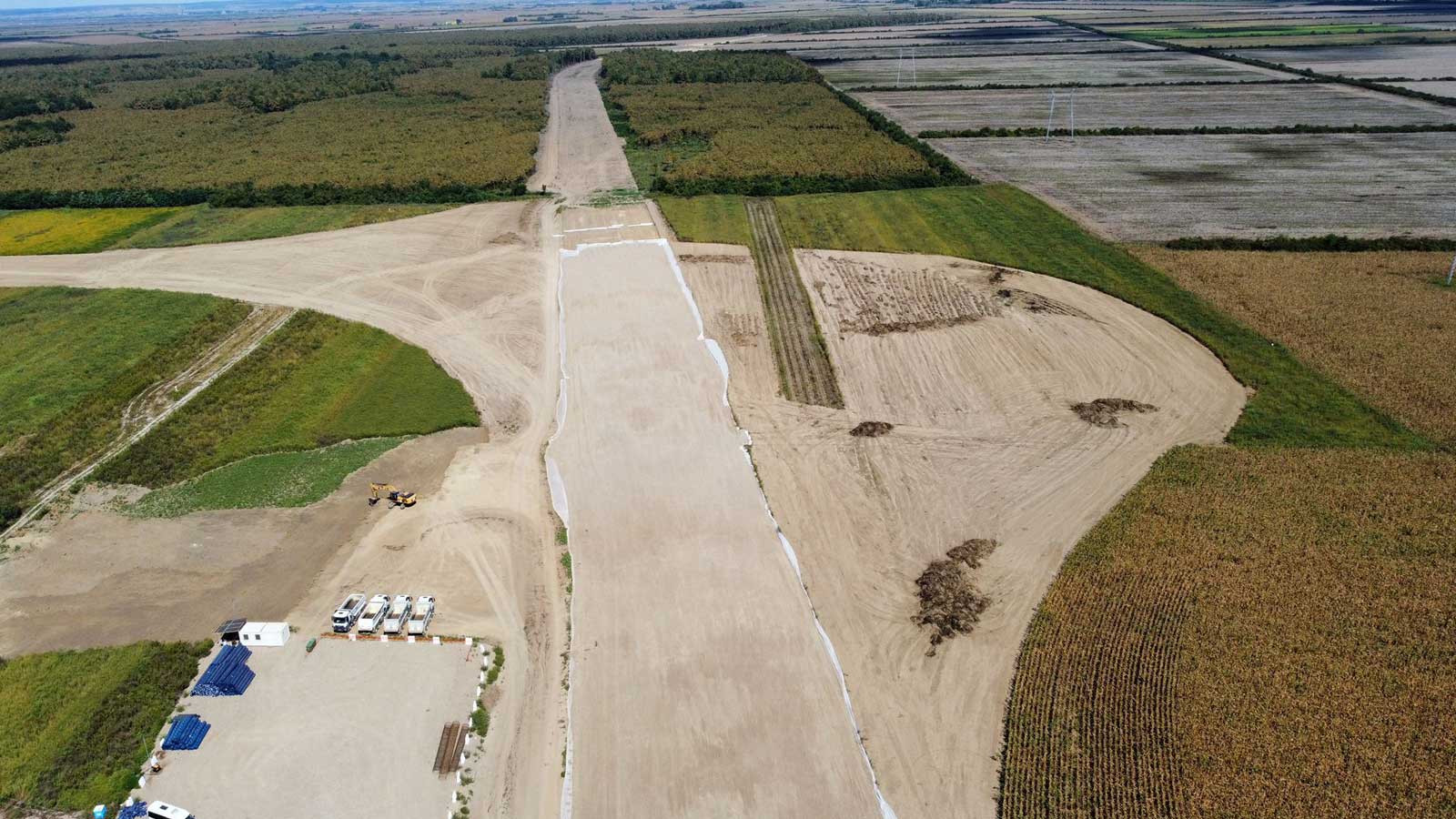

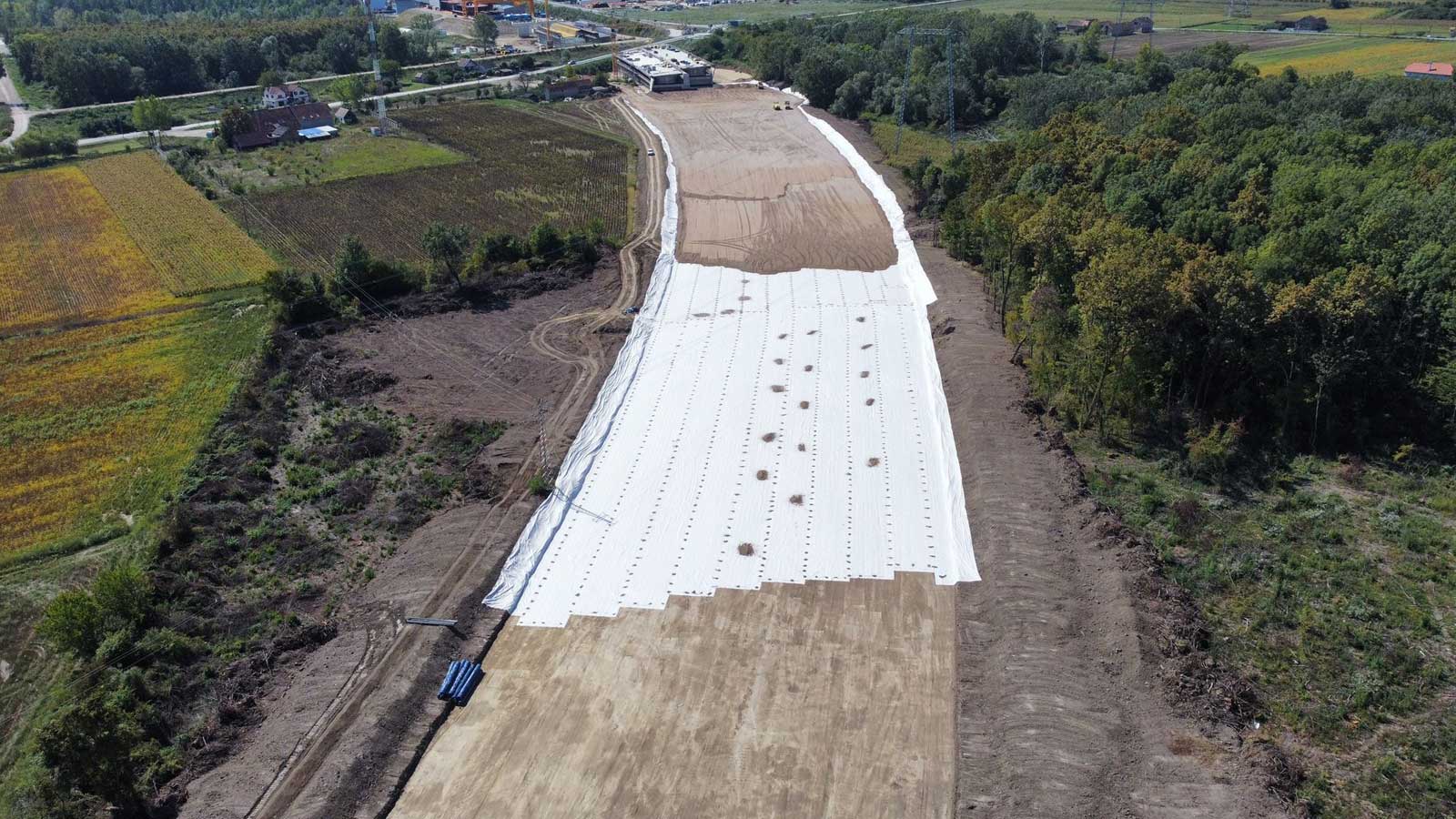

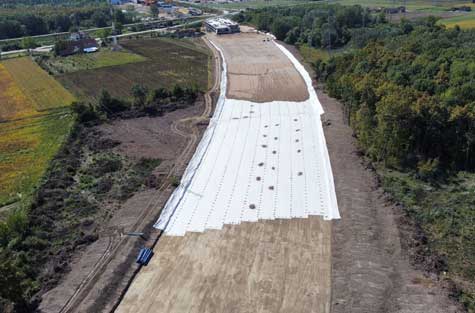

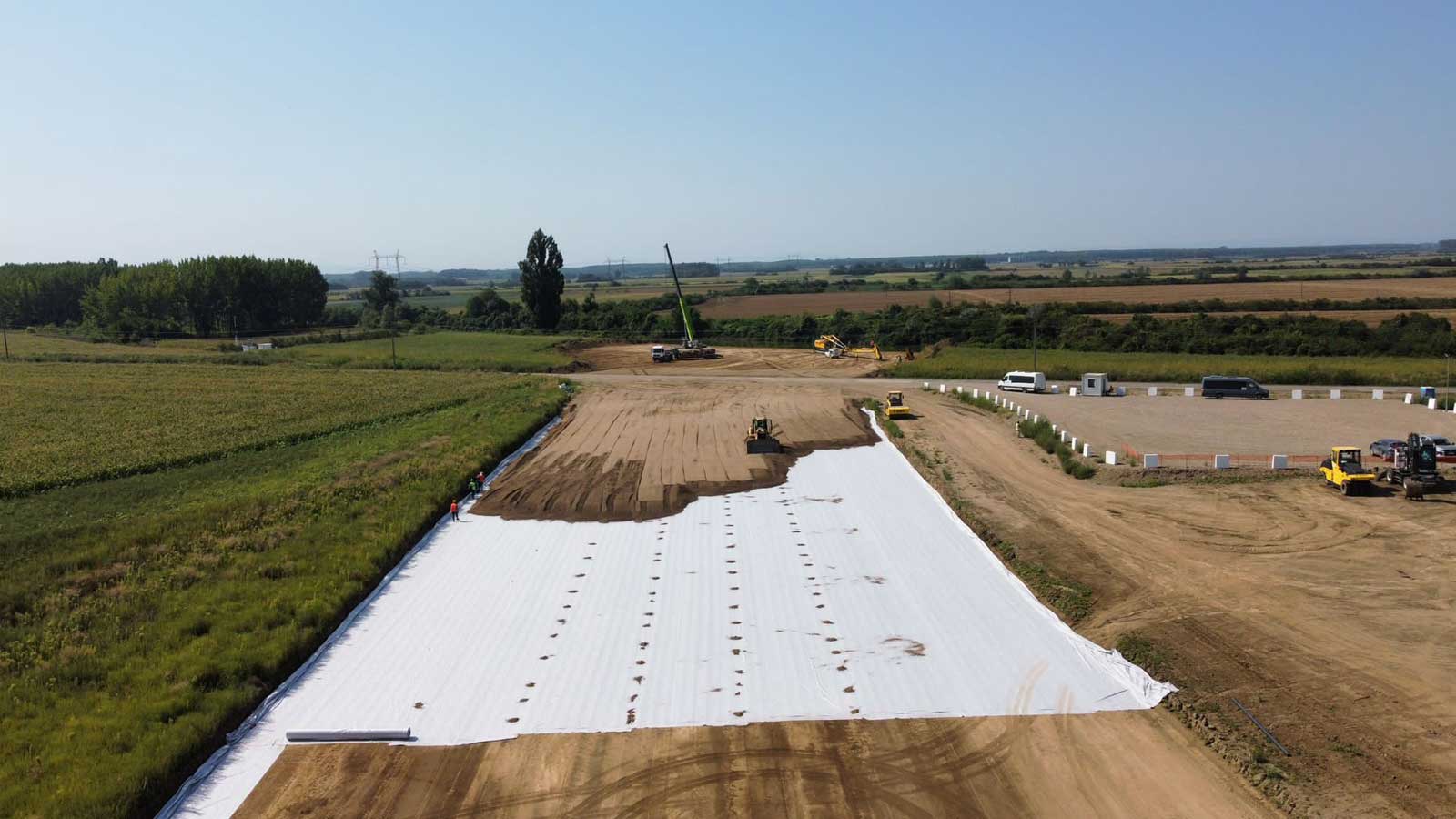

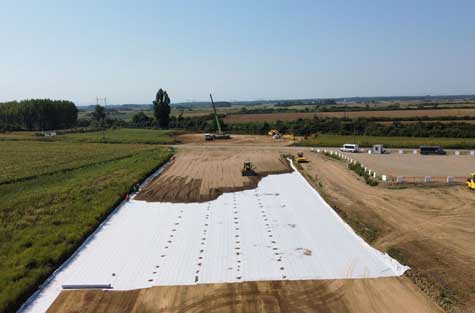

Earthworks:
- Excavation: 1 376 000 m3
- Infill: 4 728 000 m3
- Road Superstructure Works:
- Wearing layer: 38400 tons
- Bituminous treated base: 59800 tons
- Sub-base layer with crushed stone: 200 000 m3

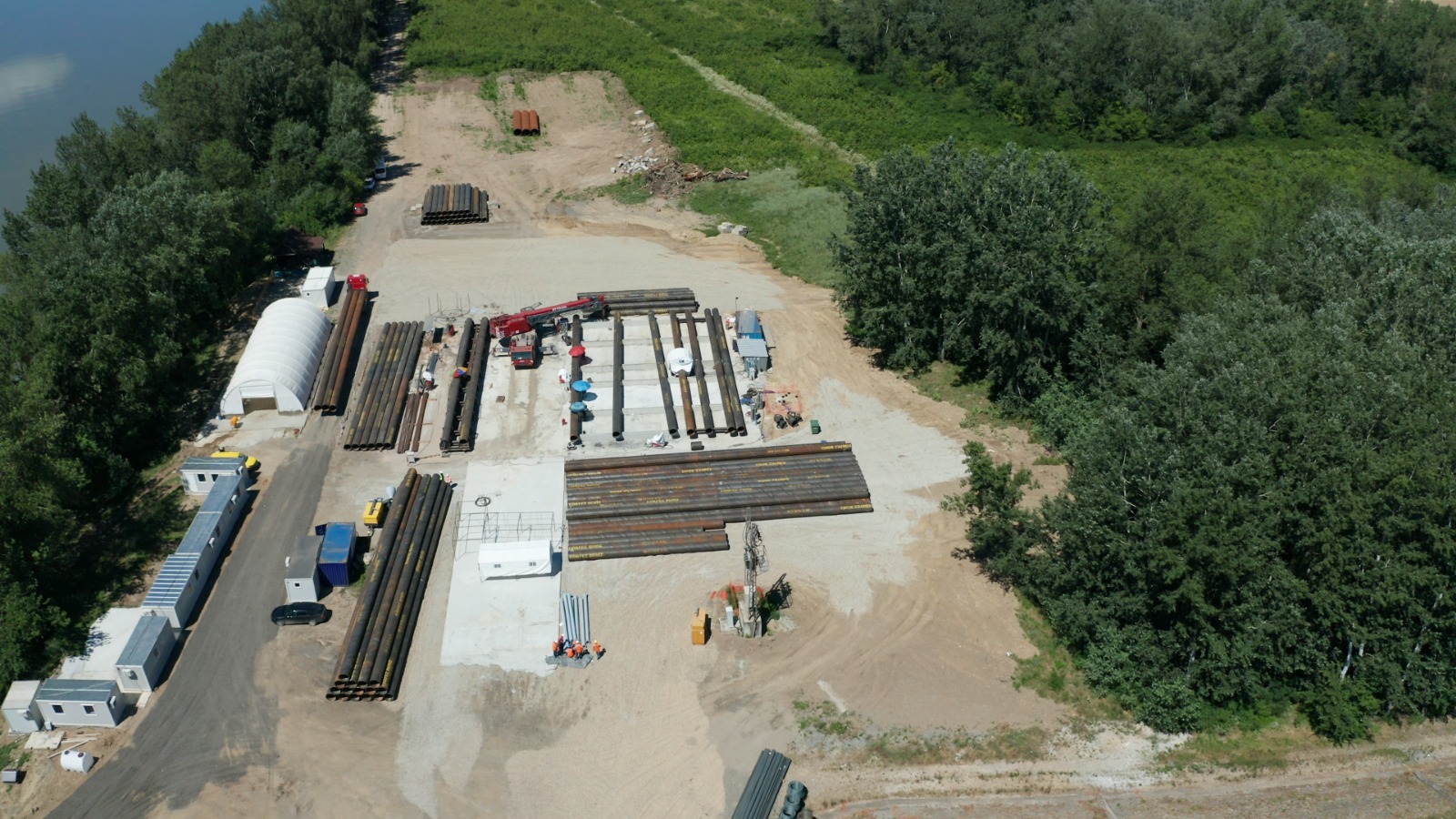

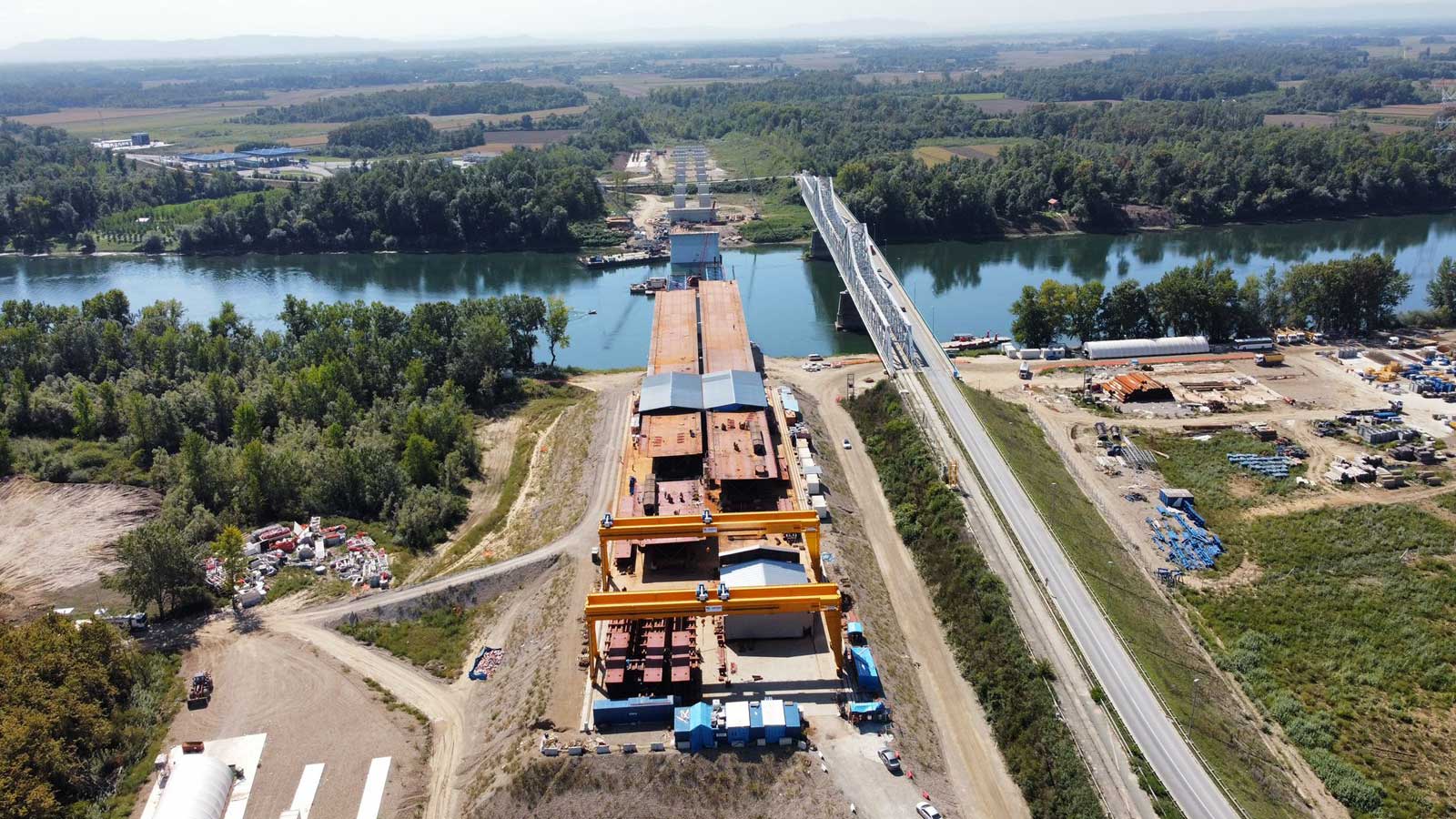

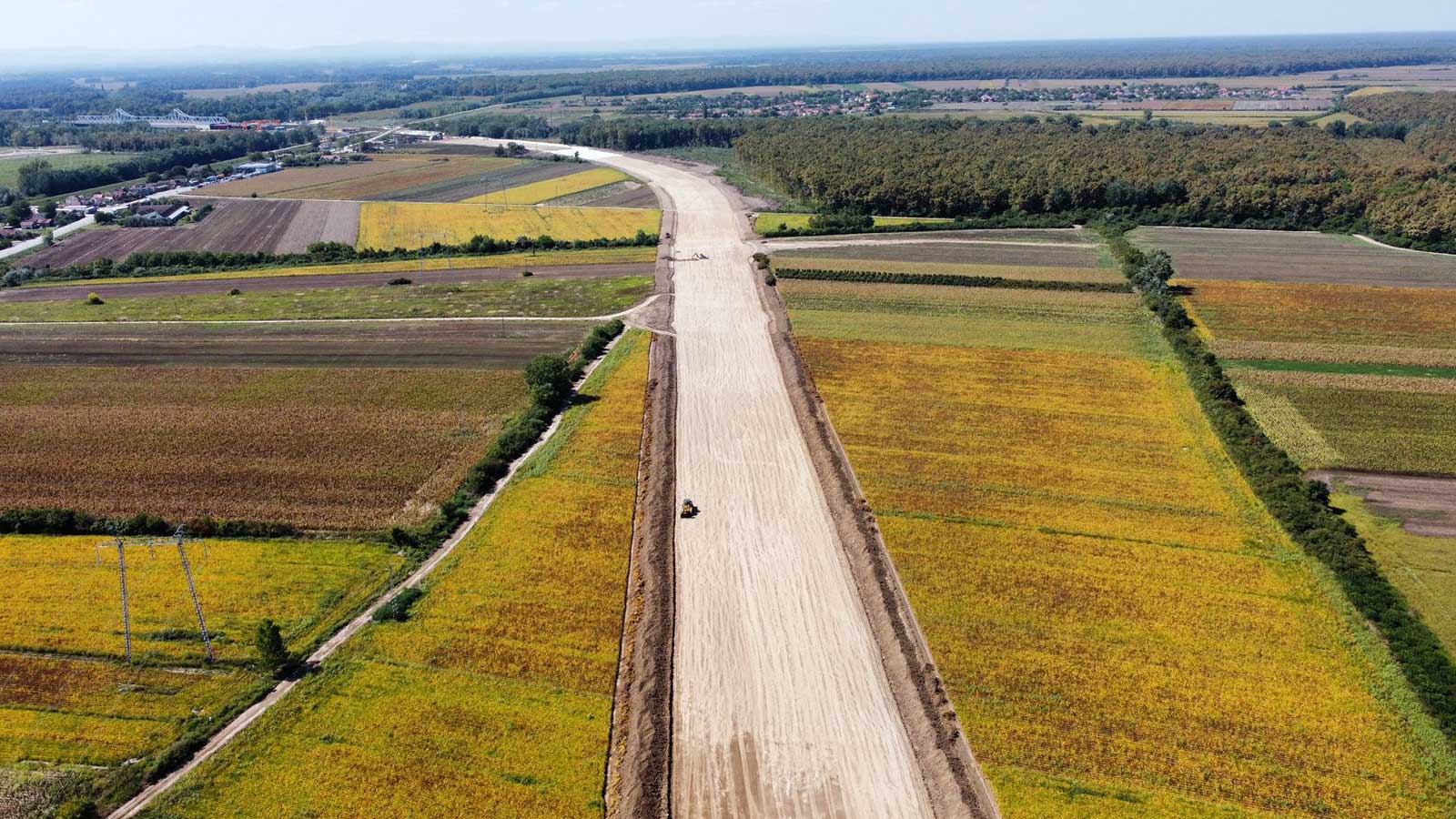

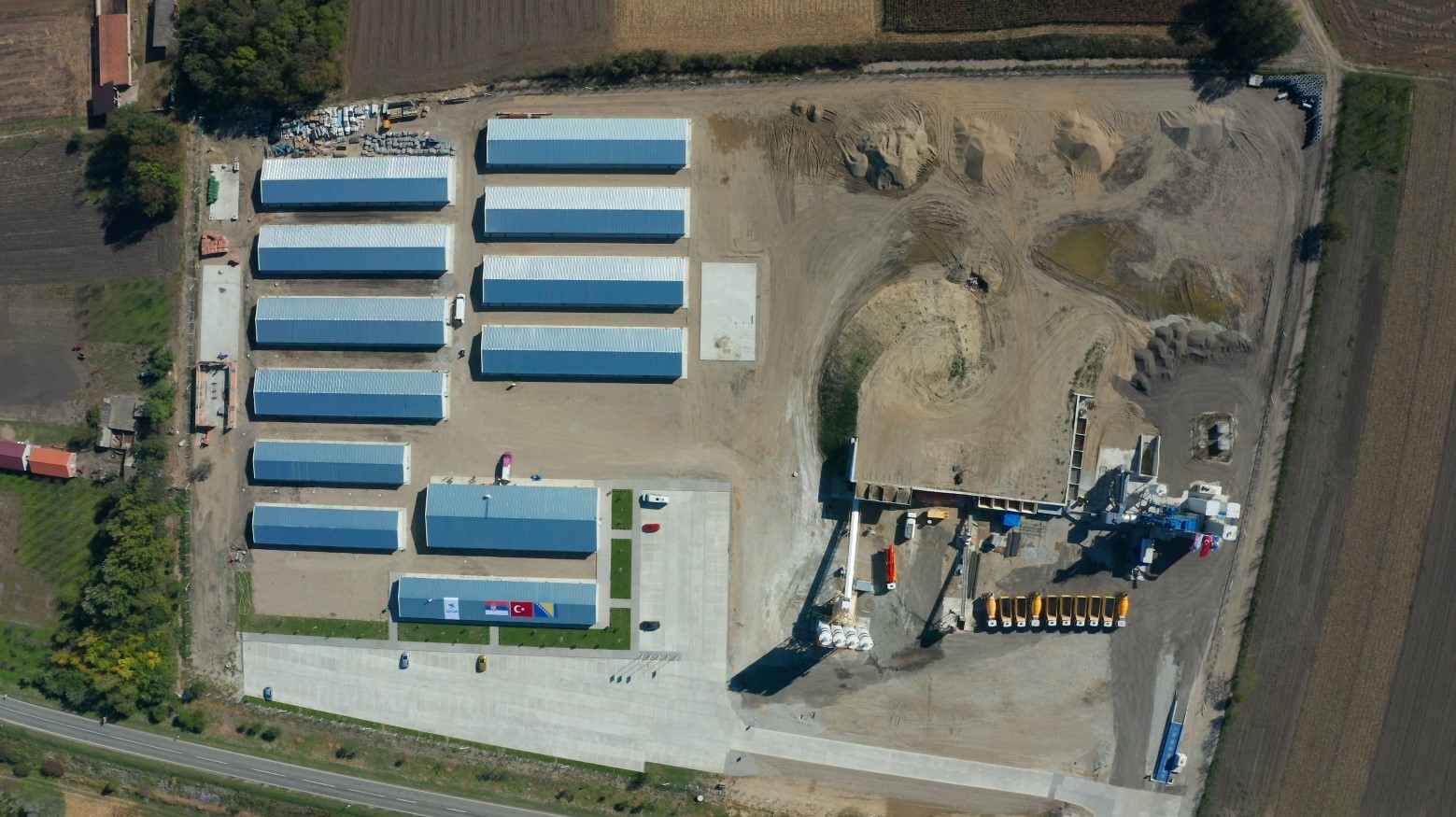

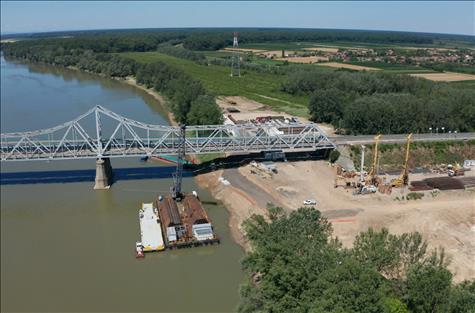

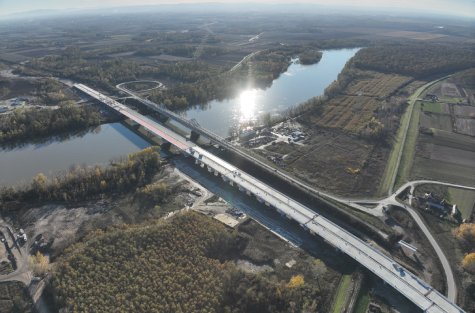

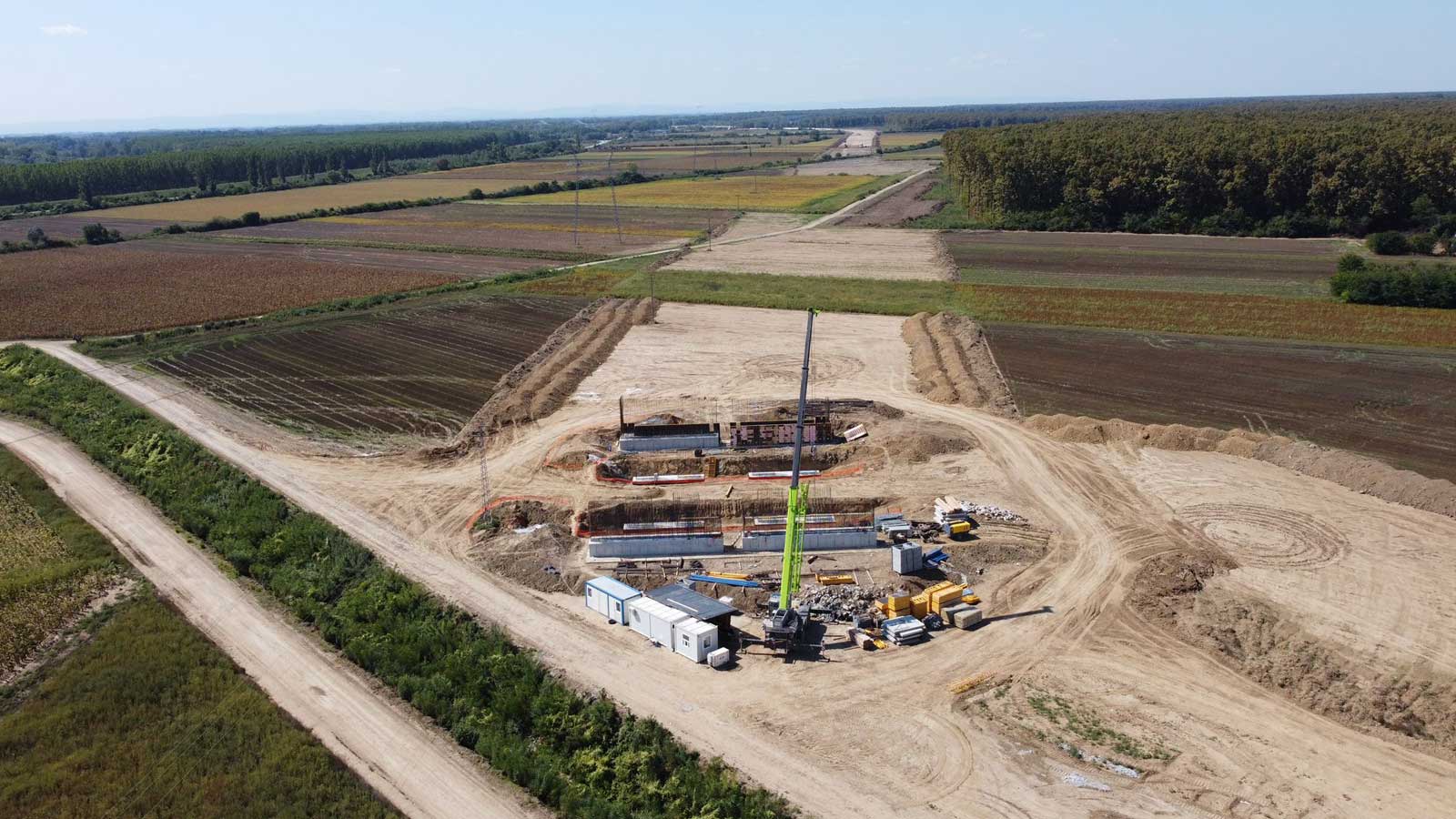

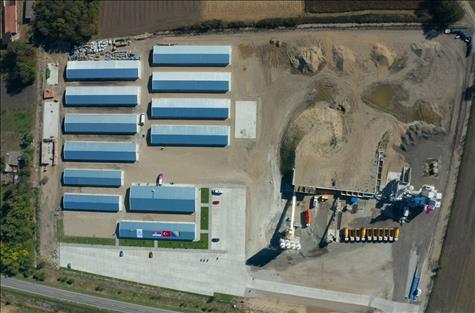

GALLERY
